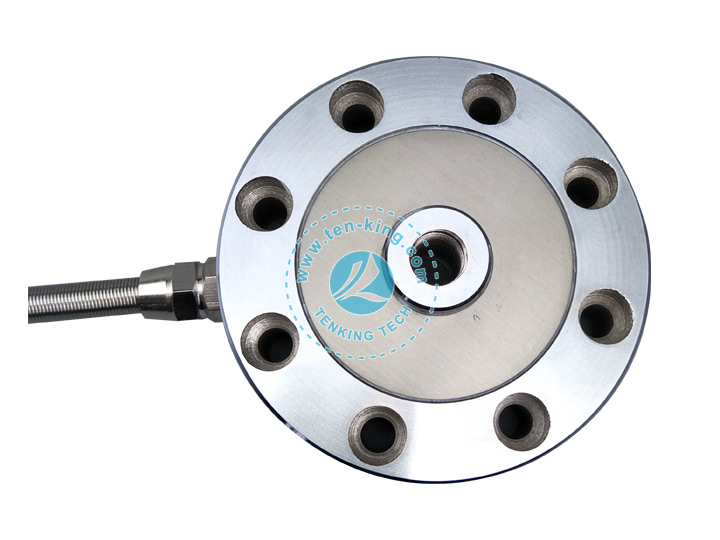

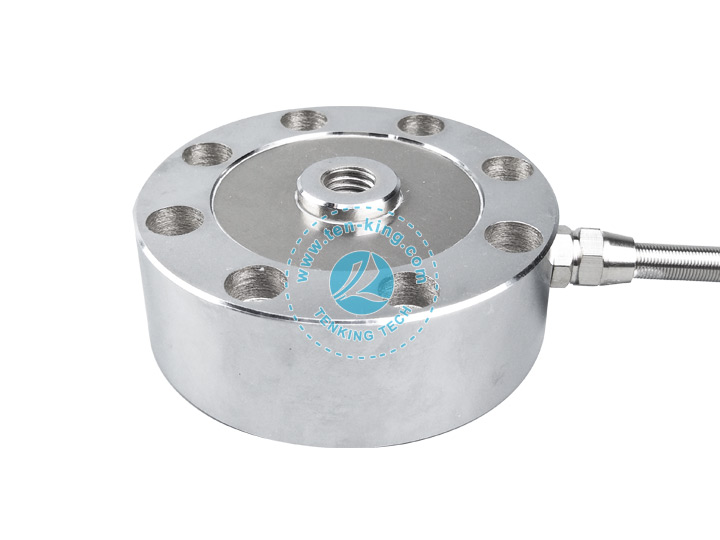

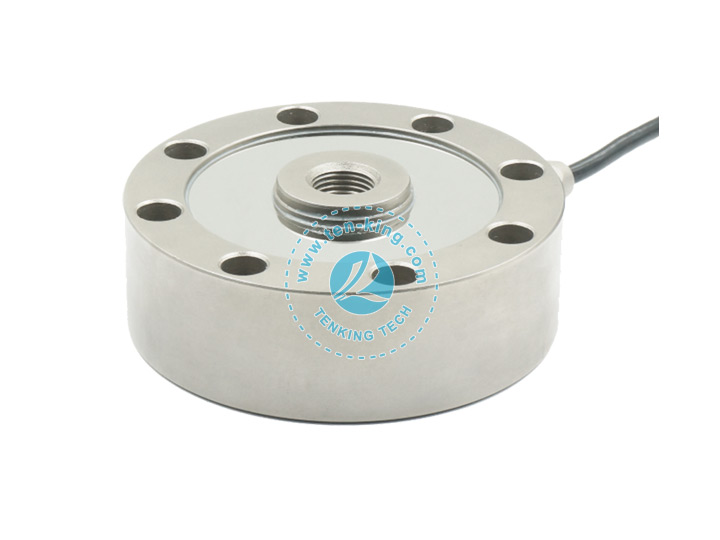

TK108轮辐传感器
量程：0.1/0.2/1/2/3/5/10/15/20/25/30t/60t
本体材质：优质合金钢镀镍
综合精度：0.03%
电缆长度：6m
|

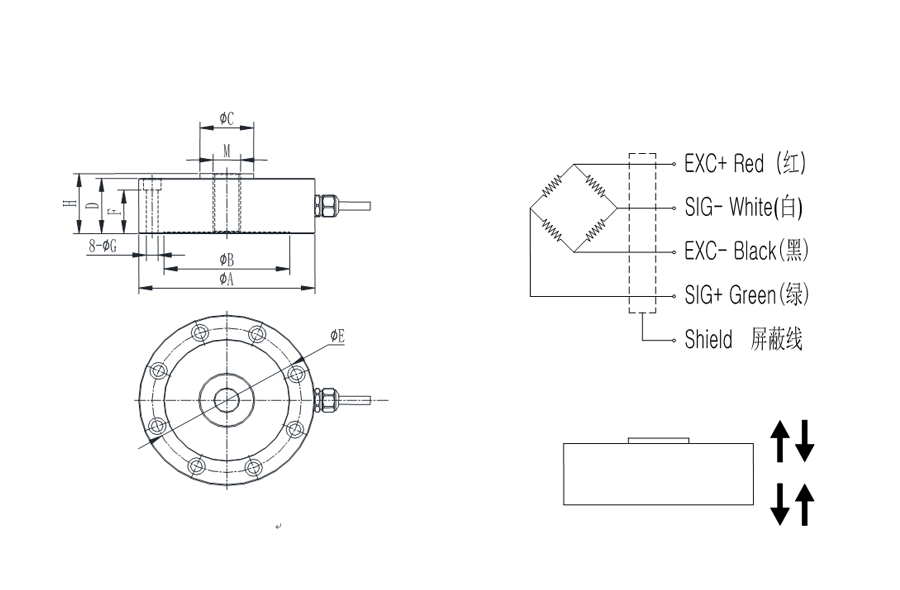

Cap（t） |
A |
B |
C |
D |
E |
F |
G |
H |
M |
|
0.1,0.2,0.5 |
88 |
56 |
22 |
31 |
72 |
23.8 |
8×7.5 |
34 |
M12×1.75 |
|
1,2,3,5 |
105 |
75 |
32 |
34 |
89 |
26.8 |
8×7.5 |
37 |
M16×1.5 |
|
10,15,20,25 |
120.6 |
83 |
39 |
41 |
101.8 |
30.5 |
8×8.5 |
53.5 |
M32×1.5 |
|
30 |
141 |
96.9 |
50.4 |
50.8 |
116.8 |
39.8 |
8×11 |
57.2 |
M40×1.5 |
|
50t |
208 |
140 |
95 |
70 |
174 |
55 |
8×13 |
70 |
M64×3 |
|
参数 |
Specifications |
技术指标/Technique |
|
额定容量 |
Capacity |
0.1,0.2,1,2,3,5,10,15,20,25,30t |
|
输出灵敏度 |
Rated output |
2.0±1%mV/V(0.1,0.2kN) 3.0±1%mV/V(1~30kN) |
|
综合精度 |
Combined Error |
0.05%F.S |
|
零点输出 |
Zero balance |
±1% F.S. |
|
非线性 |
Non-linearity |
0.05%F.S. |
|
滞后 |
Hysteresis |
0.05%F.S. |
|
重复性 |
Repeatability |
0.03%F.S. |
|
蠕变（30min） |
Creep(30min) |
0.03%F.S. |
|
温度灵敏度漂移 |
Temp.effect on output |
0.02%F.S./10℃ |
|
零点温度漂移 |
Temp.effect on zero |
0.02%F.S./10℃ |
|
输入电阻 |
Input impedance |
780±10Ω |
|
输出电阻 |
Output impedance |
700±5Ω |
|
绝缘电阻 |
Insulation |
≥5000MΩ/100VDC |
|
激励电压 |
Recommended excitation |
5~15V |
|
工作温度范围 |
Operation temp range |
-10~70℃ |
|
安全超载 |
Safe overload |
150%F.S. |
|
电缆线尺寸 |
Cable size |
φ5×6000mm |
|
防护等级 |
IP Class |
IP67 |
