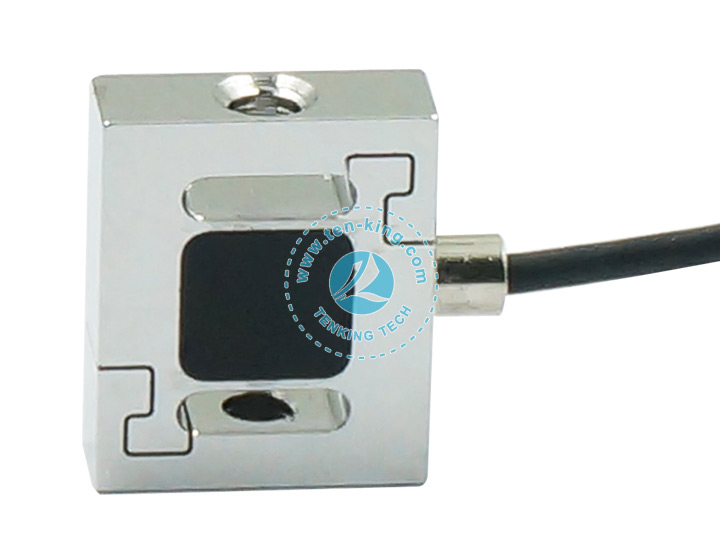

量程：10/20/50/100/200/300/500N
本体材质：不锈钢
综合精度:0.1%
电缆长度：3m
|

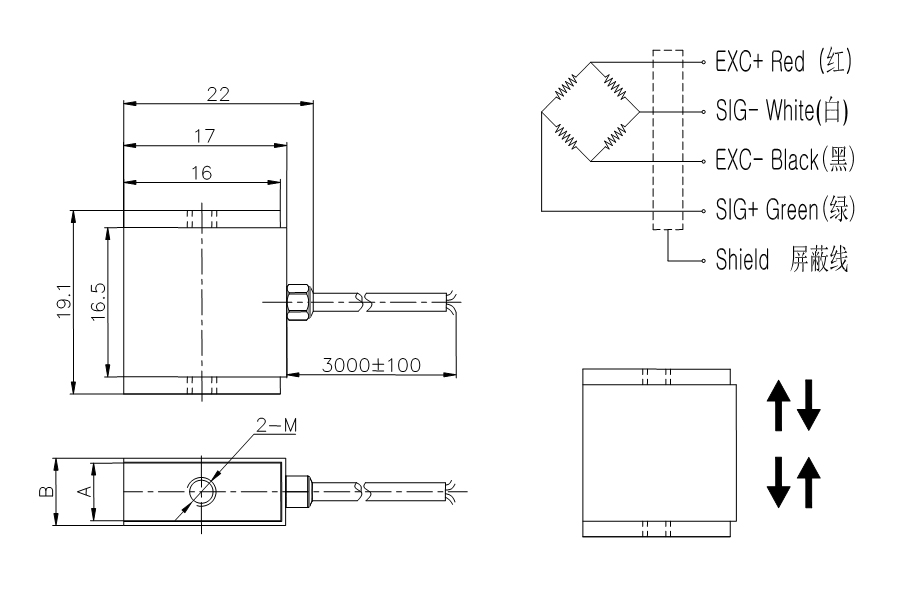

Capacity（N） |
A |
B |
M |
备注 |
|
10,20 |
5 |
6.8 |
M3 |
需要带外壳 |
|
50,100,200,300,500 |
6 |
7.5 |
M4 |
不带外壳可选 |
|
参数 |
Specifications |
技术指标/Technique |
|
额定容量 |
Capacity |
1,2.5,5,10,20,50,100,200,300,500N |
|
输出灵敏度 |
Rated output |
2.0±10%mV/V |
|
综合精度 |
Combined Error |
0.1%F.S |
|
零点输出 |
Zero balance |
±0.02mV/V |
|
非线性 |
Non-linearity |
0.05%F.S. |
|
滞后 |
Hysteresis |
0.05%F.S. |
|
重复性 |
Repeatability |
0.05%F.S. |
|
蠕变（30min） |
Creep(30min) |
0.05%F.S. |
|
温度灵敏度漂移 |
Temp.effect on output |
0.05%F.S./10℃ |
|
零点温度漂移 |
Temp.effect on zero |
0.05%F.S./10℃ |
|
输入电阻 |
Input impedance |
350±30Ω |
|
输出电阻 |
Output impedance |
350±5Ω |
|
绝缘电阻 |
Insulation |
≥5000MΩ/100VDC |
|
激励电压 |
Recommended excitation |
5V |
|
工作温度范围 |
Operation temp range |
-20~80℃ |
|
安全超载 |
Safe overload |
150%F.S. |
|
电缆线尺寸 |
Cable size |
φ2×4000mm |
|
材料 |
Material |
Stainless Steel（不锈钢） |
|
防护等级 |
IP Class |
IP66 |
